Supra Heavy-Duty Clamp

W2 - Stainless steel

The Supra Clamp is the evolution of the Super Clamp, making it the ideal choice for demanding applications in the industrial, automotive and agricultural sectors.

Thanks to its revolutionary swivel bridge design, it can be easily mounted without removing the hose, making it easy to assemble and disassemble without having to remove other parts of the clamp.

*Fully complies with RoHs EU Directive 2002/95/EC dated 1st July 2006 and all its amendments.

Benefits:

High Performance: The geometry of this heavy-duty clamp has been specifically designed to provide high performance.
High Strength: Its high-strength bolt ensures a safe tightening and allows high torque values to be achieved.
High Protection: Bevelled edges prevent cutting of the hose and ensure a secure connection.

*Special dimensions can be manufactured on request.

Patented worldwide.

W4 - Stainless steel AISI 304

The Supra Clamp is the evolution of the Super Clamp, making it the ideal choice for demanding applications in the industrial, automotive and agricultural sectors.

Thanks to its revolutionary swivel bridge design, it can be easily mounted without removing the hose, making it easy to assemble and disassemble without having to remove other parts of the clamp.

*Fully complies with RoHs EU Directive 2002/95/EC dated 1st July 2006 and all its amendments.

Benefits:

High Performance: The geometry of this heavy-duty clamp has been specifically designed to provide high performance.
High Strength: Its high-strength bolt ensures a safe tightening and allows high torque values to be achieved.
High Protection: Bevelled edges prevent cutting of the hose and ensure a secure connection.

*Special dimensions can be manufactured on request.

Patented worldwide.

W5 - Stainless steel AISI 316

The Supra Clamp is the evolution of the Super Clamp, making it the ideal choice for demanding applications in the industrial, automotive and agricultural sectors.

Thanks to its revolutionary swivel bridge design, it can be easily mounted without removing the hose, making it easy to assemble and disassemble without having to remove other parts of the clamp.

*Fully complies with RoHs EU Directive 2002/95/EC dated 1st July 2006 and all its amendments.

Benefits:

High Performance: The geometry of this heavy-duty clamp has been specifically designed to provide high performance.
High Strength: Its high-strength bolt ensures a safe tightening and allows high torque values to be achieved.
High Protection: Bevelled edges prevent cutting of the hose and ensure a secure connection.

*Special dimensions can be manufactured on request.

Patented worldwide.

What quality do you need?

Brochure-SUPRAW2.pdf

Download |

Material:
Stainless steel band W2 AISI 430 X6Cr17 (DIN 1.4016)
Steel screw 19MnB4 (EN-10269) Zinc plated Cr3

Corrosion resistance:
72 hours salt spray (ASTM B-117)

Max. Tightening speed (RPM):
540 ± 5

All references

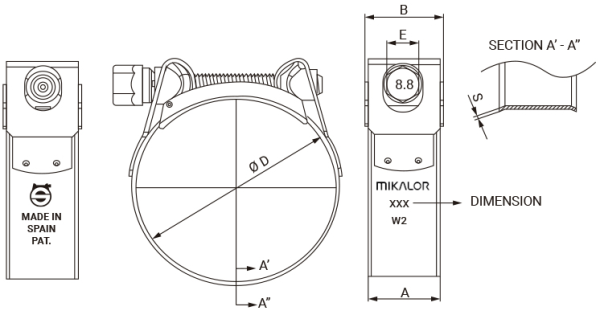

Part number	Ø D Application mm	Screw metric	Ø D +1 -0.5	A ± 0.3	S ± 0.3	B ±0.5	E ±0.2	Max. Pressure Bar	Max. Torque Nm	Box Quantity	Outer Box Quantity
03019010	17-18	M6	18	18	0,6	19,8	8	45	10	50	400
03019011	18-19	M6	19	18	0,6	19,8	8	45	10	50	400
03019020	19-21	M6	21	18	0,6	19,8	8	45	10	50	400
03019039	21-23	M6	23	18	0,6	19,8	8	45	10	50	400
03019047	23-25	M6	25	18	0,6	19,8	8	45	10	50	400
03019055	25-27	M6	27	18	0,6	19,8	8	45	10	50	400
03019063	27-29	M6	29	18	0,6	19,8	8	45	10	50	200
03019071	29-31	M7	31	20	0,8	22,0	10	40	13	50	50
03019080	31-34	M7	34	20	0,8	22,0	10	40	13	50	50
03019098	34-37	M7	37	20	0,8	22,0	10	40	13	50	50
03019100	37-40	M7	40	20	0,8	22,0	10	40	13	50	50
03019119	40-43	M7	43	20	0,8	22,0	10	40	13	50	50
03019127	43-47	M7	47	20	0,9	22,0	10	36	16	50	50
03019135	47-51	M7	51	20	0,9	22,0	10	36	16	50	50
03019143	51-55	M7	55	20	0,9	22,0	10	36	16	25	25
03019151	55-59	M7	59	20	0,9	22,0	10	36	16	25	25
03019160	59-63	M7	63	20	0,9	22,0	10	36	16	25	25
03019178	63-68	M7	68	20	0,9	22,0	10	36	16	25	25
03019186	68-73	M8	73	25	1,0	27,5	13	28	30	25	25
03019194	73-79	M8	79	25	1,0	27,5	13	28	30	25	25
03019207	79-85	M8	85	25	1,0	27,5	13	28	30	25	25
03019215	85-91	M8	91	25	1,0	27,5	13	20	30	25	25
03019223	91-97	M8	97	25	1,0	27,5	13	20	30	25	25
03019231	97-104	M8	104	25	1,0	27,5	13	20	30	25	25
03019240	104-112	M8	112	25	1,0	27,5	13	12	30	25	25
03019258	112-121	M8	121	25	1,0	27,5	13	12	30	25	25
03019266	121-130	M8	130	25	1,0	27,5	13	12	30	25	25
03019274	130-140	M10	140	28	1,2	31,0	15	9	45	10	10
03019282	140-150	M10	150	28	1,2	31,0	15	9	45	10	10
03019290	150-162	M10	162	28	1,2	31,0	15	9	45	10	10
03019303	162-174	M10	174	28	1,2	31,0	15	6	45	10	10
03019311	174-187	M10	187	28	1,2	31,0	15	6	45	10	10
03019320	187-200	M10	200	28	1,2	31,0	15	6	45	10	10
03019338	200-213	M10	213	28	1,2	31,0	15	3	45	10	10
03019346	213-226	M10	226	28	1,2	31,0	15	3	45	10	10
03019354	226-239	M10	239	28	1,2	31,0	15	3	45	10	10
03019362	239-252	M10	252	28	1,2	31,0	15	3	45	10	10
03019370	252-265	M10	265	28	1,2	31,0	15	3	45	10	10
03019477	265-278	M10	278	28	1,2	31,0	15	3	45	10	10
03019392	278-291	M10	291	28	1,2	31,0	15	3	45	10	10
03019403	291-304	M10	304	28	1,2	31,0	15	3	45	10	10
03019411	304-317	M10	317	28	1,2	31,0	15	3	45	10	10
03019485	317-330	M10	330	28	1,2	31,0	15	3	45	10	10
03019422	330-343	M10	343	28	1,2	31,0	15	3	45	10	10
03019433	343-356	M10	356	28	1,2	31,0	15	3	45	10	10
03019444	356-369	M10	369	28	1,2	31,0	15	3	45	10	10
03019455	369-382	M10	382	28	1,2	31,0	15	3	45	10	10
03019499	382-395	M10	395	28	1,2	31,0	15	3	45	10	10
03019500	395-408	M10	408	28	1,2	31,0	15	3	45	10	10

All references

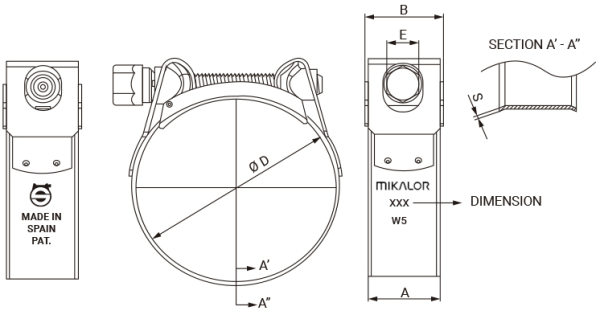

Part number	Ø D Application mm	Screw metric	Ø D +1 -0.5	A ± 0.3	S ± 0.3	B ±0.5	E ±0.2	Max. Pressure Bar	Max. Torque Nm	Box Quantity	Outer Box Quantity
03013014	17-18	M6	18	18	0,6	19,8	8	40	10	50	400
03013015	18-19	M6	19	18	0,6	19,8	8	40	10	50	400
03013024	19-21	M6	21	18	0,6	19,8	8	40	10	50	400
03013032	21-23	M6	23	18	0,6	19,8	8	40	10	50	400
03013040	23-25	M6	25	18	0,6	19,8	8	40	10	50	400
03013059	25-27	M6	27	18	0,6	19,8	8	40	10	50	400
03013067	27-29	M6	29	18	0,6	19,8	8	40	10	50	200
03013075	29-31	M7	31	20	0,8	22,0	10	35	13	50	50
03013083	31-34	M7	34	20	0,8	22,0	10	35	13	50	50
03013091	34-37	M7	37	20	0,8	22,0	10	35	13	50	50
03013104	37-40	M7	40	20	0,8	22,0	10	35	13	50	50
03013112	40-43	M7	43	20	0,8	22,0	10	35	13	50	50
03013120	43-47	M7	47	20	0,8	22,0	10	35	16	50	50
03013139	47-51	M7	51	20	0,8	22,0	10	30	16	50	50
03013147	51-55	M7	55	20	0,8	22,0	10	30	16	25	25
03013155	55-59	M7	59	20	0,8	22,0	10	30	16	25	25
03013163	59-63	M7	63	20	0,8	22,0	10	30	16	25	25
03013171	63-68	M7	68	20	0,8	22,0	10	30	16	25	25
03013180	68-73	M8	73	25	1,0	27,5	13	20	30	25	25
03013198	73-79	M8	79	25	1,0	27,5	13	20	30	25	25
03013200	79-85	M8	85	25	1,0	27,5	13	20	30	25	25
03013219	85-91	M8	91	25	1,0	27,5	13	15	30	25	25
03013227	91-97	M8	97	25	1,0	27,5	13	15	30	25	25
03013235	97-104	M8	104	25	1,0	27,5	13	15	30	25	25
03013243	104-112	M8	112	25	1,0	27,5	13	10	30	25	25
03013251	112-121	M8	121	25	1,0	27,5	13	10	30	25	25
03013260	121-130	M8	130	25	1,0	27,5	13	10	30	25	25
03013278	130-140	M10	140	28	1,2	31,0	17	6	45	10	10
03013286	140-150	M10	150	28	1,2	31,0	17	6	45	10	10
03013294	150-162	M10	162	28	1,2	31,0	17	6	45	10	10
03013307	162-174	M10	174	28	1,2	31,0	17	3	45	10	10
03013315	174-187	M10	187	28	1,2	31,0	17	3	45	10	10
03013323	187-200	M10	200	28	1,2	31,0	17	3	45	10	10
03013331	200-213	M10	213	28	1,2	31,0	17	3	45	10	10
03013340	213-226	M10	226	28	1,2	31,0	17	3	45	10	10
03013358	226-239	M10	239	28	1,2	31,0	17	3	45	10	10
03013366	239-252	M10	252	28	1,2	31,0	17	3	45	10	10
03013374	252-265	M10	265	28	1,2	31,0	17	3	45	10	10
03013390	265-278	M10	278	28	1,2	31,0	17	3	45	10	10
03013422	278-291	M10	291	28	1,2	31,0	17	3	45	10	10
03013433	291-304	M10	304	28	1,2	31,0	17	3	45	10	10
03013444	304-317	M10	317	28	1,2	31,0	17	3	45	10	10
03013403	317-330	M10	330	28	1,2	31,0	17	3	45	10	10
03013455	330-343	M10	343	28	1,2	31,0	17	3	45	10	10
03013466	343-356	M10	356	28	1,2	31,0	17	3	45	10	10
03013477	356-369	M10	369	28	1,2	31,0	17	3	45	10	10
03013488	369-382	M10	382	28	1,2	31,0	17	3	45	10	10
03013499	382-395	M10	395	28	1,2	31,0	17	3	45	10	10
03013500	395-408	M10	408	28	1,2	31,0	17	3	45	10	10

All references

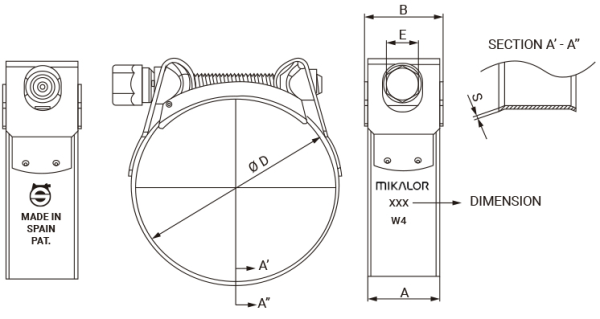

Part number	Ø D Application mm	Screw metric	Ø D +1 -0.5	A ± 0.3	S ± 0.3	B ±0.5	E ±0.2	Max. Pressure Bar	Max. Torque Nm	Box Quantity	Outer Box Quantity
03013612	17-18	M6	18	18	0,6	19,8	8	40	10	50	400
03013613	18-19	M6	19	18	0,6	19,8	8	40	10	50	400
03013622	19-21	M6	21	18	0,6	19,8	8	40	10	50	400
03013630	21-23	M6	23	18	0,6	19,8	8	40	10	50	400
03013649	23-25	M6	25	18	0,6	19,8	8	40	10	50	400
03013657	25-27	M6	27	18	0,6	19,8	8	40	10	50	400
03013665	27-29	M6	29	18	0,6	19,8	8	40	10	50	200
03013673	29-31	M7	31	20	0,8	22,0	10	35	13	50	50
03013681	31-34	M7	34	20	0,8	22,0	10	35	13	50	50
03013690	34-37	M7	37	20	0,8	22,0	10	35	13	50	50
03013702	37-40	M7	40	20	0,8	22,0	10	35	13	50	50
03013710	40-43	M7	43	20	0,8	22,0	10	35	13	50	50
03013729	43-47	M7	47	20	0,8	22,0	10	35	16	50	50
03013737	47-51	M7	51	20	0,8	22,0	10	30	16	50	50
03013745	51-55	M7	55	20	0,8	22,0	10	30	16	25	25
03013753	55-59	M7	59	20	0,8	22,0	10	30	16	25	25
03013761	59-63	M7	63	20	0,8	22,0	10	30	16	25	25
03013770	63-68	M7	68	20	0,8	22,0	10	30	16	25	25
03013788	68-73	M8	73	25	1,0	27,5	13	20	30	25	25
03013796	73-79	M8	79	25	1,0	27,5	13	20	30	25	25
03013809	79-85	M8	85	25	1,0	27,5	13	20	30	25	25
03013817	85-91	M8	91	25	1,0	27,5	13	15	30	25	25
03013825	91-97	M8	97	25	1,0	27,5	13	15	30	25	25
03013833	97-104	M8	104	25	1,0	27,5	13	15	30	25	25
03013841	104-112	M8	112	25	1,0	27,5	13	10	30	25	25
03013850	112-121	M8	121	25	1,0	27,5	13	10	30	25	25
03013868	121-130	M8	130	25	1,0	27,5	13	10	30	25	25
03013876	130-140	M10	140	28	1,2	31,0	17	6	45	10	10
03013884	140-150	M10	150	28	1,2	31,0	17	6	45	10	10
03013892	150-162	M10	162	28	1,2	31,0	17	6	45	10	10
03013905	162-174	M10	174	28	1,2	31,0	17	3	45	10	10
03013913	174-187	M10	187	28	1,2	31,0	17	3	45	10	10
03013921	187-200	M10	200	28	1,2	31,0	17	3	45	10	10
03013930	200-213	M10	213	28	1,2	31,0	17	3	45	10	10
03013948	213-226	M10	226	28	1,2	31,0	17	3	45	10	10
03013956	226-239	M10	239	28	1,2	31,0	17	3	45	10	10
03013964	239-252	M10	252	28	1,2	31,0	17	3	45	10	10
03013971	252-265	M10	265	28	1,2	31,0	17	3	45	10	10
03013981	265-278	M10	278	28	1,2	31,0	17	3	45	10	10
03013982	278-291	M10	291	28	1,2	31,0	17	3	45	10	10
03013983	291-304	M10	304	28	1,2	31,0	17	3	45	10	10
03013984	304-317	M10	317	28	1,2	31,0	17	3	45	10	10
03013985	317-330	M10	330	28	1,2	31,0	17	3	45	10	10
03013986	330-343	M10	343	28	1,2	31,0	17	3	45	10	10
03013991	343-356	M10	356	28	1,2	31,0	17	3	45	10	10
03013992	356-369	M10	369	28	1,2	31,0	17	3	45	10	10
03013993	369-382	M10	382	28	1,2	31,0	17	3	45	10	10
03013994	382-395	M10	395	28	1,2	31,0	17	3	45	10	10
03013995	395-408	M10	408	28	1,2	31,0	17	3	45	10	10
