SUPRA - The Ultimate Heavy Duty Clamp for Zero-Leak Performance

We know exactly what is at stake. When an industrial system or a vehicle engine operates at peak performance in high-pressure environments, choosing a substandard clamp is more than just a mistake—it is an unacceptable risk. The cost of a failure far outweighs the value of the component itself.

The SUPRA clamp by Mikalor was engineered specifically to meet this critical need for safety and reliability. Its launch over 35 years ago revolutionized the market, and today, it continues to set the global industry standard.

This heavy-duty hose clamp is the result of decades of expertise and investment in R&D and technology. Our mission remains clear: to provide professionals with the absolute certainty that their installations will never fail.

As a result, the SUPRA has solidified its position as the global benchmark in the high-pressure clamp family. It is the preferred choice for the most demanding conditions in sectors such as Automotive, Industrial Manufacturing, and Agriculture.

This innovation is defined by its unique ability to combine:

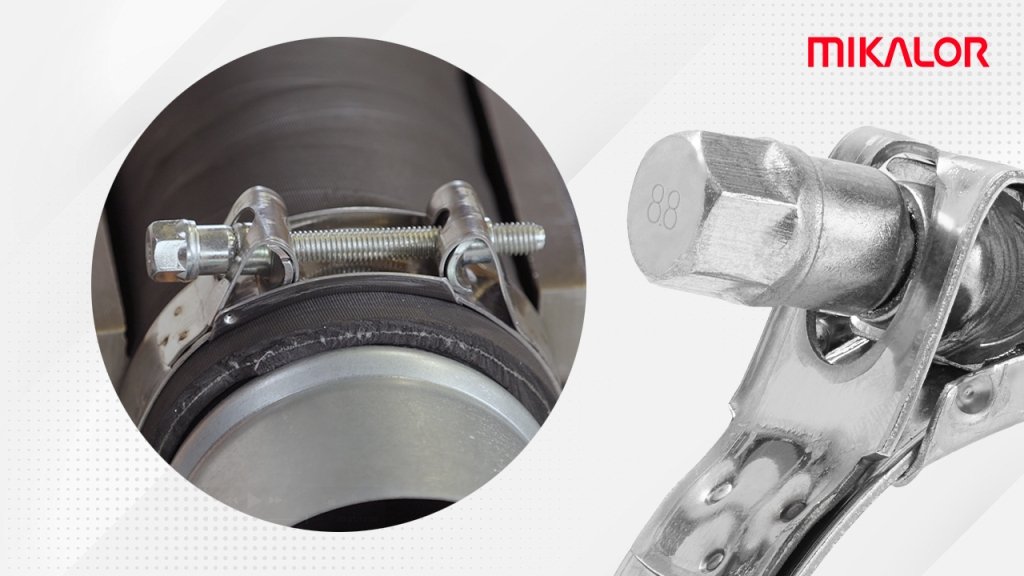

• Revolutionary Design: Featuring a Grade 8.8 (W2) high-tensile bolt and robust spot-welding, ensuring a tightening torque significantly higher than standard industry alternatives.

• Superior Functionality: Integrating a flip-top (swivel) bridge system that allows for full opening, simplifying assembly and disassembly while streamlining the professional’s workflow.

• High-Performance Engineering: Capable of withstanding pressures of up to 45 BAR (650 PSI), it is available in various stainless steel grades and complies with strict regulations such as DIN 3017-3 and the RoHS Directive.

Read on to discover why the SUPRA is the only clamp that guarantees zero-leak performance.

1. The Revolutionary Design of the SUPRA High-Pressure Heavy-Duty Clamp

The Third Industrial Revolution and the subsequent leap in technological advancements created a critical demand: the global market required a metallic clamp that was stronger, safer, and capable of withstanding increasingly grueling operating conditions.

Large-scale facilities, heavy-duty engines, and complex hydraulic systems reached a breaking point where they needed a high-pressure hose clamp that offered genuine reliability and a clamping force tailored to these high-stakes applications.

This urgent market need gave birth to what we now know as the Mikalor SUPRA clamp. It is a product that defines the modern standard for industrial bolt clamps, combining advanced mechanical engineering, premium-grade materials, and a tightening system optimized for extreme environments.

The SUPRA has become the global benchmark because its revolutionary design responds precisely to the three fundamental demands of the industrial sector:

• Enhanced Safety in High-Pressure Applications: Engineered to prevent catastrophic failure in systems under extreme stress.

• Superior Torque Control: Providing a precise and consistent tightening torque that exceeds standard requirements.

• Maximum Reliability: Optimized for environments subject to constant vibration and intense thermal cycling.

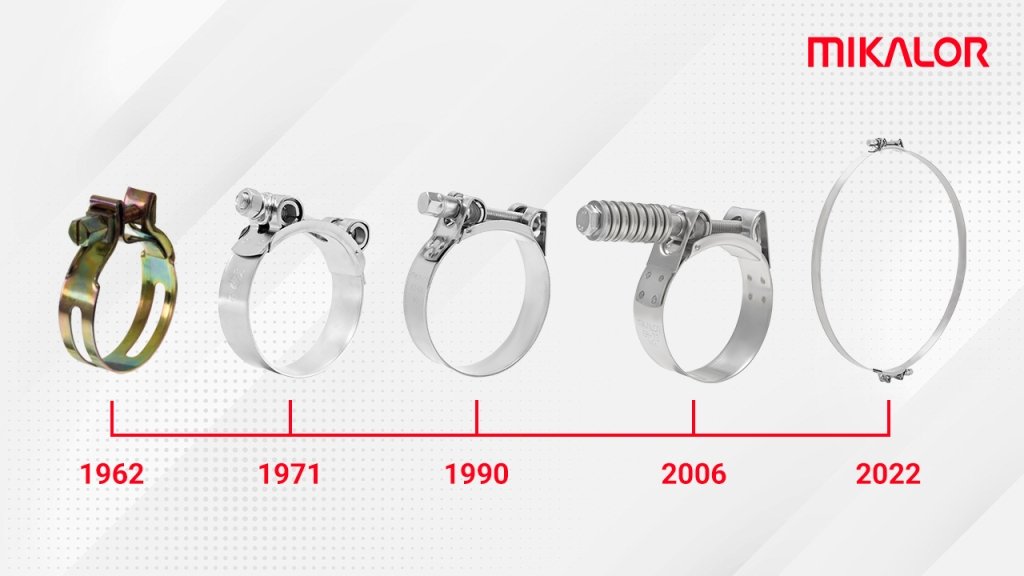

1.1 The Evolution of the SUPRA: From Custom Solution to the Global Benchmark in High-Pressure Clamping

The SUPRA clamp is the direct result of long-term vision. Far from being a one-off invention, it is the fruit of decades of continuous evolution led by Mikalor, consistently anticipating the shifting demands of the global industry. Each stage of its development has refined the high-pressure metallic clamp, optimizing its performance, service life, and ease of assembly.

1962 – The Origin of High-Pressure Fastening

In 1962, the SUPER clamp was launched, serving as the technical foundation for what would later become the SUPRA. Its mission was clear: to provide a metallic clamp capable of handling larger diameters and higher pressures than traditional worm-drive clamps.

The initial design already targeted three essential improvements:

• Increased Clamping Force: Going beyond standard torque limits.

• Enhanced High-Pressure Performance: Maintaining integrity under load.

• Critical Safety for Industrial Installations: Mitigating risks in high-stakes environments.

This first model laid the groundwork for the future SUPRA high-pressure hose clamp family.

1971 – Advancements in Band Width and Tightening Systems

A qualitative leap occurred in 1971. The SUPER evolved into a more robust and efficient hose clamp, incorporating direct feedback from the field to meet the rigorous standards of the time:

• Increased Band Width: This expanded the contact surface between the clamp and the hose or tube, ensuring a more uniform pressure distribution.

• Advanced Tightening System: The introduction of a dedicated nut optimized torque transmission, allowing for precise and controlled tightening.

• Reinforced Bushings and Trunnions: Increasing structural strength at the highest-stress points.

• Non-Perforated Band Design: Eliminating perforations reduced potential weak spots and significantly enhanced the tensile strength of the band.

• Superior Band Profiling: Improving the clamp’s ability to conform to the tube’s contour, ensuring a perfect seal in high-demand applications.

This evolution solidified the modern concept of the heavy-duty high-pressure clamp as we know it today.

1990 – The Birth of the SUPRA Heavy-Duty Clamp

The year 1990 marked a turning point: the design was completely overhauled, leading to the official launch of the Mikalor SUPRA. This was a high-pressure clamp engineered with a global perspective, meeting the most stringent international requirements.

Key advancements introduced during this phase included:

• Elimination of Hexavalent Chromium (Bichromate): Shifting toward more efficient materials in full compliance with emerging global environmental standards.

• Expanded Stainless Steel Grades: The introduction of W2, W4, and W5 grades, significantly increasing corrosion resistance in harsh and aggressive environments.

• Architecture Optimization:

  • Redesigned trunnions for better load handling.

  • Improved band geometry to ensure a perfect fit.

  • Reinforced spot welding for maximum structural integrity.

  • Seamless integration of the bolt-and-bushing assembly.

Since then, the SUPRA has become the industry benchmark for Automotive, Agriculture, and Specialized Machinery sectors.

2006 – SUPRA CT: Constant Tension for High-Pressure Applications

In 2006, the range expanded with the SUPRA Constant Tension (SUPRA CT). This variant of the high-pressure bolt clamp was specifically engineered for applications involving:

• Extreme Temperature Fluctuations.

• Continuous Vibrations.

• Demanding Duty Cycles.

The SUPRA CT features a specialized bolt assembly with Belleville (conical) washers. This system automatically compensates for the expansion and contraction of materials—a phenomenon known as thermal creep.

In practice, this ensures the clamp maintains constant performance and tightening torque, even when the hose, tube, or ambient conditions vary significantly. This makes the SUPRA CT the ideal high-pressure metallic fastener for systems where joint stability is mission-critical over the long term.

2022 – SUPRA DT: Double Bolt for Large-Bore Applications

The most recent evolution arrived in 2022 with the SUPRA DT (Double Bolt). This model was specifically engineered for applications where hose or tube diameters exceed 270 mm (approx. 10.6 inches)—one of the most challenging scenarios for any high-pressure hose clamp.

The SUPRA DT features:

• Dual High-Tensile Bolts: These distribute the tightening force more effectively, allowing for homogeneous clamping pressure around the entire circumference.

• Heavy-Duty Stabilized Band: Engineered to guarantee leak-proof sealing even on extremely large diameters.

• Enhanced Pressure Control: Providing precision torque application for critical installations.

With the introduction of the DT, the SUPRA family now covers the entire industrial spectrum—from standard sizes to large-diameter piping—solidifying its status as the most comprehensive range of high-pressure bolt clamps on the market.

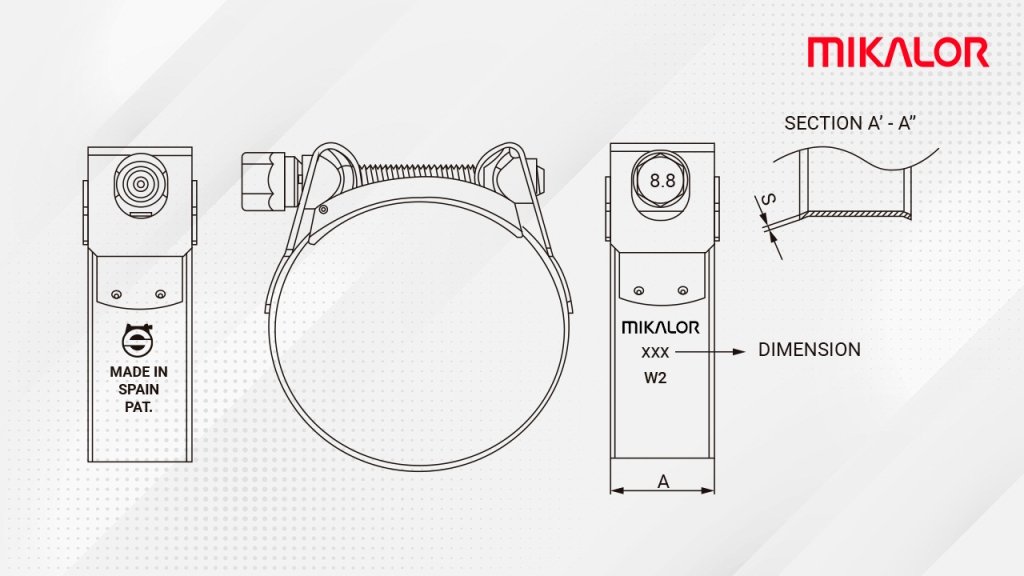

2. The Core Engineering of the SUPRA Design

After reviewing the heritage of the SUPRA, it is time to deep-dive into the engineering that powers its performance. The efficiency of a heavy-duty clamp does not rely on raw tightening force alone; it requires a meticulously designed architecture to ensure a reliable, stable, and long-lasting seal in the harshest environments.

For the SUPRA clamp, this structural integrity is built upon three fundamental pillars: a proprietary high-tensile bolt, a reinforced spot-welding system, and a precision-optimized geometry designed for maximum stability.

2.1. The Proprietary Grade High-Tensile Bolt

In any metallic clamp, the bolt is the component that defines the actual load capacity. In the SUPRA, this element is elevated through exclusive design and manufacturing.

• Unique Proprietary Design: This bolt is a registered Mikalor design, specifically optimized and engineered to integrate perfectly with the entire SUPRA range.

• High-Tensile Steel (Grade 8.8): Manufactured from Grade 8.8 (W2) carbon steel, it provides the necessary robustness to achieve extreme tightening torques without compromising the assembly's integrity. This is a non-negotiable requirement for high-pressure applications and critical industrial infrastructure.

2.1.1 Key Bolt Specifications

2.1.1.1 Proprietary Hexagonal Head Configuration

The hexagonal head is an integral part of Mikalor’s exclusive and registered bolt design, serving as a cornerstone of the clamp’s patented locking system. Its unique configuration ensures that the SUPRA clamp can be assembled with maximum efficiency, whether using manual tools or automated assembly lines.

2.1.1.2 Integrated Base Flanges for Automated Mounting

The base of the bolt head features functional ridges or "lugs" specifically engineered to interface with automated power tools. This engineering detail is critical for ensuring the speed and precision required in high-volume production environments and modern assembly lines.

2.1.1.3 Metric Production Standards (M6, M7, M8, and M10)

The bolt is manufactured in four metric diameters—M6, M7, M8, and M10—allowing for precise calibration across the entire SUPRA range. This size variation guarantees that the Grade 8.8 (W2) high-tensile strength and ultra-high performance remain consistent, regardless of the specific application range.

2.2 Reinforced Projection Welding Points

The immense force generated by a high-tensile bolt must be effectively transferred to and supported by the clamp body. This is where cutting-edge production technology becomes vital:

• Structural Integrity: Depending on the size range, the clamp features 2, 3, or 4 projection welding points. This specialized technique provides superior shear resistance and prevents structural deformation even when reaching maximum peak torque.

• Efficient Load Transfer: This welding system ensures that the clamping force generated by the bolt is distributed uniformly and effectively across the entire band of the hose clamp.

The combination of premium raw materials and a reinforced weld design allows the SUPRA clamp to achieve torque and performance values that are unmatched in the high-pressure market. Thanks to this robust architecture, the clamp maintains its integrity under extreme conditions, ensuring a stable, vibration-proof, and long-lasting seal.

2.3. Precision-Engineered Geometry

The geometry of the SUPRA is the result of meticulous optimization, striking the perfect balance between lightweight design, clamping capacity, and hose protection.

• Optimized Design: The SUPRA’s architecture reduces overall weight without compromising the extreme performance that defines this heavy-duty metallic clamp. This balance is critical in sectors like Automotive and Industrial Machinery, where every gram matters and every joint must be failsafe.

• Safety and Durability: The beveled (rounded) band edges serve a dual purpose:

  • Hose Integrity: They prevent cuts, abrasions, or localized damage to tubes and hoses during high-torque tightening.

  • Occupational Safety: They significantly reduce the risk of injury for operators during handling and installation.

The SUPRA hose clamp stands out due to its technical architecture, seamlessly integrating a high-tensile bolt, reinforced welds, and precision-optimized geometry. This synergy does more than just increase clamping force—it guarantees exceptional performance across the Industrial, Automotive, and Agricultural sectors.

Ultimately, its superior design has solidified the SUPRA as the global benchmark in high-pressure clamping.

More Than Just a Clamp

The SUPRA clamp is much more than the sum of its parts; it is a genuine guarantee of safety, stability, and reliability for any installation. Its performance is no accident—it is the legacy of over 80 years of expertise from Mikalor, a brand globally recognized for precision engineering.

When the goal is to ensure zero-leak performance with a metallic clamp engineered for superior results, SUPRA is the world standard.

If you are looking to elevate your system’s security to the next level, our technical team is available for expert consultation. You can also access our PRIVATE AREA to browse the complete SUPRA range and download technical specifications.

And this is only the beginning. In the second part of this series, we will dive deep into the technical specifications: application and mounting values, sector-specific use cases, stainless steel grades, regulatory compliance (DIN 3017-3 and RoHS), and the latest innovations within the SUPRA family.
