ASFA S (12 mm) Hose Clamp

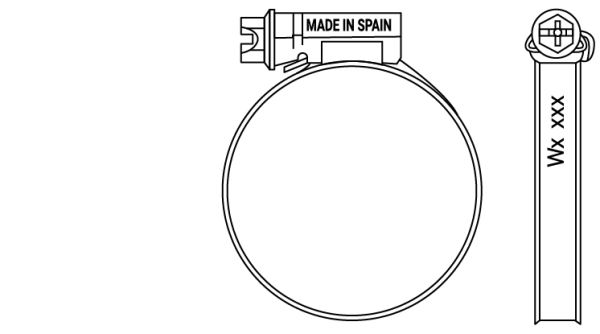

W1

The ASFA S 12mm hose clamp represents a further step in the evolution of the ASFA. Designed to meet the demands of industrial applications, this model features an optimised design.

*Fully complies with the DIN 3017 quality standard and EU Directive 2002/95/EC.

Benefits:

Increased Performance: The advanced design of the housing allows efficient installation of hose clamps, reducing lateral movement when tightening the workpiece.
Increased Pressure Capacity: With a wider bandwidth, the ASFA S hose clamp can withstand higher torques and pressures, especially in larger diameter applications.
Material Versatility: Available in a wide range of grades, from galvanised steel for an economical option, to high quality stainless steel, ideal for applications in high humidity and corrosive environments.

W2

The ASFA S 12mm hose clamp represents a further step in the evolution of the ASFA. Designed to meet the demands of industrial applications, this model features an optimised design.

*Fully complies with the DIN 3017 quality standard and EU Directive 2002/95/EC.

Benefits:

Increased Performance: The advanced design of the housing allows efficient installation of hose clamps, reducing lateral movement when tightening the workpiece.
Increased Pressure Capacity: With a wider bandwidth, the ASFA S hose clamp can withstand higher torques and pressures, especially in larger diameter applications.
Material Versatility: Available in a wide range of grades, from galvanised steel for an economical option, to high quality stainless steel, ideal for applications in high humidity and corrosive environments.

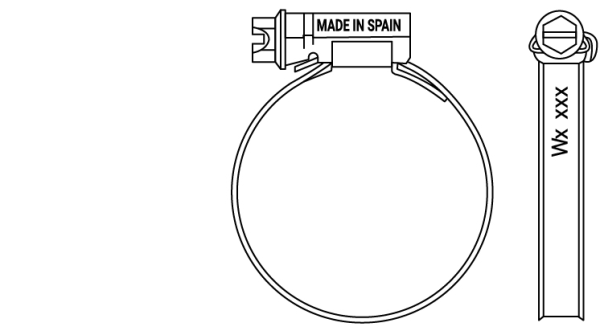

W3

The ASFA S 12mm hose clamp represents a further step in the evolution of the ASFA. Designed to meet the demands of industrial applications, this model features an optimised design.

*Fully complies with the DIN 3017 quality standard and EU Directive 2002/95/EC.

Benefits:

Increased Performance: The advanced design of the housing allows efficient installation of hose clamps, reducing lateral movement when tightening the workpiece.
Increased Pressure Capacity: With a wider bandwidth, the ASFA S hose clamp can withstand higher torques and pressures, especially in larger diameter applications.
Material Versatility: Available in a wide range of grades, from galvanised steel for an economical option, to high quality stainless steel, ideal for applications in high humidity and corrosive environments.

W4

The ASFA S 12mm hose clamp represents a further step in the evolution of the ASFA. Designed to meet the demands of industrial applications, this model features an optimised design.

*Fully complies with the DIN 3017 quality standard and EU Directive 2002/95/EC.

Benefits:

Increased Performance: The advanced design of the housing allows efficient installation of hose clamps, reducing lateral movement when tightening the workpiece.
Increased Pressure Capacity: With a wider bandwidth, the ASFA S hose clamp can withstand higher torques and pressures, especially in larger diameter applications.
Material Versatility: Available in a wide range of grades, from galvanised steel for an economical option, to high quality stainless steel, ideal for applications in high humidity and corrosive environments.

W5

The ASFA S 12mm hose clamp represents a further step in the evolution of the ASFA. Designed to meet the demands of industrial applications, this model features an optimised design.

*Fully complies with the DIN 3017 quality standard and EU Directive 2002/95/EC.

Benefits:

Increased Performance: The advanced design of the housing allows efficient installation of hose clamps, reducing lateral movement when tightening the workpiece.
Increased Pressure Capacity: With a wider bandwidth, the ASFA S hose clamp can withstand higher torques and pressures, especially in larger diameter applications.
Material Versatility: Available in a wide range of grades, from galvanised steel for an economical option, to high quality stainless steel, ideal for applications in high humidity and corrosive environments.

Brochure-ASW1.pdf

Download |

Material:
Band and support: W1 Galvanized steel DIN 1.0935
Bolt: Steel Qst 36-3 DIN 1.0214

Finish:
Bolt: Zinc plated Cr3

Corrosion resistance:
144 hours salt spray (ASTM B-117)

All references

Part number	Ø Application mm	A +0.3 -0.1	L +1 -0.5	S ±0.1	H Max.	B Max.	Max. Pressure (Bar)	Max. Torque (Nm)	Box Quantity	Outer Box Quantity
03009001	16-27	12	29.6	0.85	11	16.7	45	5	50	400
03009002	20-32	12	29.6	0.85	11	16.7	45	6	50	400
03009003	25-40	12	29.6	0.85	11	16.7	40	6	50	400
03009004	30-45	12	29.6	0.85	11	16.7	35	6	50	400
03009005	32-50	12	29.6	0.85	11	16.7	35	6.5	50	200
03009006	40-60	12	29.6	0.85	11	16.7	30	6.5	50	400
03009007	50-70	12	29.6	0.85	11	16.7	25	7.5	50	400
03009008	60-80	12	29.6	0.85	11	16.7	20	7.5	50	50
03009009	70-90	12	29.6	0.85	11	16.7	17	7.5	50	50
03009010	80-100	12	29.6	0.85	11	16.7	14	7.5	25	200
03009011	90-110	12	29.6	0.85	11	16.7	12	7.5	25	200
03009012	100-120	12	29.6	0.85	11	16.7	10	7.5	25	200
03009013	110-130	12	29.6	0.85	11	16.7	8	7.5	25	25
03009014	120-140	12	29.6	0.85	11	16.7	7	7.5	25	25
03009015	130-150	12	31.6	0.85	11	16.7	6	7.5	25	25
03009016	140-160	12	31.6	0.85	11	16.7	5	7.5	25	25
03009017	150-170	12	31.6	0.85	11	16.7	4	7.5	25	25
03009018	160-180	12	31.6	0.85	11	16.7	3	7.5	25	25
03009019	170-190	12	31.6	0.85	11	16.7	2	7.5	10	10
03009020	180-200	12	31.6	0.85	11	16.7	1.8	7.5	10	10
03009021	190-210	12	31.6	0.85	11	16.7	1.8	7.5	10	10
03009022	200-220	12	31.6	0.85	11	16.7	1.8	7.5	10	10
03009023	210-230	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03009024	220-240	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03009025	230-250	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03009029	240-260	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03009030	250-270	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03009031	260-280	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03009032	270-290	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03009033	280-300	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03009034	290-310	12	31.6	0.85	11	16.7	1.6	7.5	10	10

All references

Part number	Ø Application mm	A +0.3 -0.1	L +1 -0.5	S ±0.1	H Max.	B Max.	Max. Pressure (Bar)	Max. Torque (Nm)	Box Quantity	Outer Box Quantity
03017017	16-27	12	29.6	0.85	11	16.7	45	5	50	400
03017025	20-32	12	29.6	0.85	11	16.7	45	6	50	400
03017033	25-40	12	29.6	0.85	11	16.7	40	6	50	400
03017009	30-45	12	29.6	0.85	11	16.7	35	6	50	400
03017041	32-50	12	29.6	0.85	11	16.7	35	6.5	50	200
03017050	40-60	12	29.6	0.85	11	16.7	30	6.5	50	400
03017068	50-70	12	29.6	0.85	11	16.7	25	7.5	50	400
03017076	60-80	12	29.6	0.85	11	16.7	20	7.5	50	50
03017084	70-90	12	29.6	0.85	11	16.7	17	7.5	50	50
03017092	80-100	12	29.6	0.85	11	16.7	14	7.5	25	200
03017105	90-110	12	29.6	0.85	11	16.7	12	7.5	25	200
03017113	100-120	12	29.6	0.85	11	16.7	10	7.5	25	200
03017121	110-130	12	29.6	0.85	11	16.7	8	7.5	25	25
03017130	120-140	12	29.6	0.85	11	16.7	7	7.5	25	25
03017148	130-150	12	31.6	0.85	11	16.7	6	7.5	25	25
03017156	140-160	12	31.6	0.85	11	16.7	5	7.5	25	25
03017164	150-170	12	31.6	0.85	11	16.7	4	7.5	25	25
03017172	160-180	12	31.6	0.85	11	16.7	3	7.5	25	25
03017180	170-190	12	31.6	0.85	11	16.7	2	7.5	10	10
03017199	180-200	12	31.6	0.85	11	16.7	2	7.5	10	10
03017201	190-210	12	31.6	0.85	11	16.7	1.8	7.5	10	10
03017210	200-220	12	31.6	0.85	11	16.7	1.8	7.5	10	10
03017228	210-230	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03017236	220-240	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03017245	230-250	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03017253	240-260	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03017261	250-270	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03017278	260-280	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03017288	270-290	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03017296	280-300	12	31.6	0.85	11	16.7	1.6	7.5	10	10
03017309	290-310	12	31.6	0.85	11	16.7	1.6	7.5	10	10

All references

Part number	Ø Application mm	A +0.3 -0.1	L +1 -0.5	S ±0.1	H Max.	B Max.	Max. Pressure (Bar)	Max. Torque (Nm)	Box Quantity	Outer Box Quantity
03016209	16-27	12	29.6	0.8	11	16.7	45	4.5	50	400
03016217	20-32	12	29.6	0.8	11	16.7	45	5.5	50	400
03016225	25-40	12	29.6	0.8	11	16.7	40	5.5	50	400
03016233	30-45	12	29.6	0.8	11	16.7	35	5.5	50	400
03016241	32-50	12	29.6	0.8	11	16.7	35	6	50	200
03016250	40-60	12	29.6	0.8	11	16.7	30	6	50	400
03016268	50-70	12	29.6	0.8	11	16.7	25	7	50	400
03016276	60-80	12	29.6	0.8	11	16.7	20	7	50	50
03016284	70-90	12	29.6	0.8	11	16.7	17	7	50	50
03016292	80-100	12	29.6	0.8	11	16.7	14	7	25	200
03016305	90-110	12	29.6	0.8	11	16.7	12	7	25	200
03016313	100-120	12	29.6	0.8	11	16.7	10	7	25	200
03016321	110-130	12	29.6	0.8	11	16.7	8	7	25	25
03016330	120-140	12	29.6	0.8	11	16.7	7	7	25	25
03016348	130-150	12	31.6	0.8	11	16.7	6	7	25	25
03016356	140-160	12	31.6	0.8	11	16.7	6	7	25	25
03016364	150-170	12	31.6	0.8	11	16.7	6	7	25	25
03016372	160-180	12	31.6	0.8	11	16.7	3	7	25	25
03016380	170-190	12	31.6	0.8	11	16.7	2	7	10	10
03016399	180-200	12	31.6	0.8	11	16.7	1.8	7	10	10
03016428	190-210	12	31.6	0.8	11	16.7	1.8	7	10	10
03016436	200-220	12	31.6	0.8	11	16.7	1.8	7	10	10
03016444	210-230	12	31.6	0.8	11	16.7	1.6	7	10	10
03016452	220-240	12	31.6	0.8	11	16.7	1.6	7	10	10
03016712	230-250	12	31.6	0.8	11	16.7	1.6	7	10	10
03016723	240-260	12	31.6	0.8	11	16.7	1.6	7	10	10
03016734	250-270	12	31.6	0.8	11	16.7	1.6	7	10	10
03016745	260-280	12	31.6	0.8	11	16.7	1.6	7	10	10
03016756	270-290	12	31.6	0.8	11	16.7	1.6	7	10	10
03016767	280-300	12	31.6	0.8	11	16.7	1.6	7	10	10
03016768	290-310	12	31.6	0.8	11	16.7	1.6	7	10	10

All references

Part number	Ø Application mm	A +0.3 -0.1	L +1 -0.5	S ±0.1	H Max.	B Max.	Max. Pressure (Bar)	Max. Torque (Nm)	Box Quantity	Outer Box Quantity
03014730	16-27	12	29.6	0.8	11	16.7	45	5	50	400
03014510	20-32	12	29.6	0.8	11	16.7	45	6	50	400
03014529	25-40	12	29.6	0.8	11	16.7	40	6	50	400
03014748	30-45	12	29.6	0.8	11	16.7	35	6	50	400
03014537	32-50	12	29.6	0.8	11	16.7	35	6.5	50	200
03014545	40-60	12	29.6	0.8	11	16.7	30	6.5	50	400
03014553	50-70	12	29.6	0.8	11	16.7	25	7.5	50	400
03014561	60-80	12	29.6	0.8	11	16.7	20	7.5	50	50
03014570	70-90	12	29.6	0.8	11	16.7	17	7.5	50	50
03014588	80-100	12	29.6	0.8	11	16.7	14	7.5	25	200
03014596	90-110	12	29.6	0.8	11	16.7	12	7.5	25	200
03014609	100-120	12	29.6	0.8	11	16.7	10	7.5	25	200
03014617	110-130	12	29.6	0.8	11	16.7	8	7.5	25	25
03014625	120-140	12	29.6	0.8	11	16.7	7	7.5	25	25
03014633	130-150	12	31.6	0.8	11	16.7	6	7.5	25	25
03014641	140-160	12	31.6	0.8	11	16.7	5	7.5	25	25
03014650	150-170	12	31.6	0.8	11	16.7	4	7.5	25	25
03014668	160-180	12	31.6	0.8	11	16.7	3	7.5	25	25
03014676	170-190	12	31.6	0.8	11	16.7	2	7.5	10	10
03014684	180-200	12	31.6	0.8	11	16.7	2	7.5	10	10
03014692	190-210	12	31.6	0.8	11	16.7	1.8	7.5	10	10
03014705	200-220	12	31.6	0.8	11	16.7	1.8	7.5	10	10
03014713	210-230	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03014721	220-240	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03014783	230-250	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03014751	240-260	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03014772	250-270	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03014794	260-280	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03014923	270-290	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03014935	280-300	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03014947	290-310	12	31.6	0.8	11	16.7	1.6	7.5	10	10

All references

Part number	Ø Application mm	A +0.3 -0.1	L +1 -0.5	S ±0.1	H Max.	B Max.	Max. Pressure (Bar)	Max. Torque (Nm)	Box Quantity	Outer Box Quantity
03017720	16-27	12	29.6	0.8	11	16.7	45	5	50	400
03017500	20-32	12	29.6	0.8	11	16.7	45	6	50	400
03017519	25-40	12	29.6	0.8	11	16.7	40	6	50	400
03017738	30-45	12	29.6	0.8	11	16.7	35	6	50	400
03017527	32-50	12	29.6	0.8	11	16.7	35	6.5	50	200
03017535	40-60	12	29.6	0.8	11	16.7	30	6.5	50	400
03017543	50-70	12	29.6	0.8	11	16.7	25	7.5	50	400
03017551	60-80	12	29.6	0.8	11	16.7	20	7.5	50	50
03017560	70-90	12	29.6	0.8	11	16.7	17	7.5	50	50
03017578	80-100	12	29.6	0.8	11	16.7	14	7.5	25	200
03017586	90-110	12	29.6	0.8	11	16.7	12	7.5	25	200
03017594	100-120	12	29.6	0.8	11	16.7	10	7.5	25	200
03017607	110-130	12	29.6	0.8	11	16.7	8	7.5	25	25
03017615	120-140	12	29.6	0.8	11	16.7	7	7.5	25	25
03017623	130-150	12	29.6	0.8	11	16.7	7	7.5	25	25
03017631	140-160	12	31.6	0.8	11	16.7	7	7.5	25	25
03017640	150-170	12	31.6	0.8	11	16.7	7	7.5	25	25
03017658	160-180	12	31.6	0.8	11	16.7	7	7.5	25	25
03017666	170-190	12	31.6	0.8	11	16.7	2	7.5	10	10
03017674	180-200	12	31.6	0.8	11	16.7	2	7.5	10	10
03017682	190-210	12	31.6	0.8	11	16.7	1.8	7.5	10	10
03017690	200-220	12	31.6	0.8	11	16.7	1.8	7.5	10	10
03017703	210-230	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03017711	220-240	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03017746	230-250	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03017765	240-260	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03017754	250-270	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03017776	260-280	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03017787	270-290	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03017798	280-300	12	31.6	0.8	11	16.7	1.6	7.5	10	10
03017799	290-310	12	31.6	0.8	11	16.7	1.6	7.5	10	10
