Hose Clamp: Origin, Evolution & Essential Uses in Modern Industry

A hose clamp is one of those deceptively simple components that has quietly shaped modern engineering. Despite its minimal form—a metal band clamp tightened by a mechanical device, its role is fundamental: ensuring leak-tightness, safety, and reliability in countless systems. That’s why you’ll find hose clamps in automotive, chemical processing, HVAC, food & beverage, energy, and more.

But how did this device emerge? What sets it apart from other fastening solutions? And which types exist today by material and application?

Below, we explain what a hose clamp is, trace its technical origins and evolution, and outline its most important industrial applications—highlighting where stainless steel hose clamps deliver maximum value.

Early origins of the metal hose clamp

The history of the hose clamp dates back to the early 20th century, when the automotive and naval industries required a reliable, leak-proof, and removable way to connect flexible hoses to metal pipes. Before its invention, these joints relied on twisted wire or leather straps, a rudimentary and unreliable method that was difficult to maintain.

In the 1920s, the first worm-drive hose clamps (also known as hose clips or screw clamps) were developed. These early designs featured a perforated metal band and a captive screw that, when turned, applied uniform radial pressure around the hose.

This ingenious yet simple principle transformed the safety and maintenance of fluid systems, giving birth to the modern metal hose clamp as we know it.

As industrial demands grew—higher pressures, extreme temperatures, and greater durability—the design evolved. New materials such as AISI 304 and AISI 316 stainless steel were introduced, standards like DIN 3017 were established, and new variations emerged, including constant-tension clamps and heavy duty hose clamps for demanding applications.

What is a hose clamp?

A hose clamp is a circular fastening device made of a steel band and a tightening mechanism (usually a screw). Its purpose is to secure a flexible hose onto a fitting, preventing leaks or slippage, and ensuring a tight, sealed connection.

Unlike plastic or rubber-coated clamps, metal hose clips are designed for maximum mechanical strength and resistance to high temperatures, oils, and UV exposure.

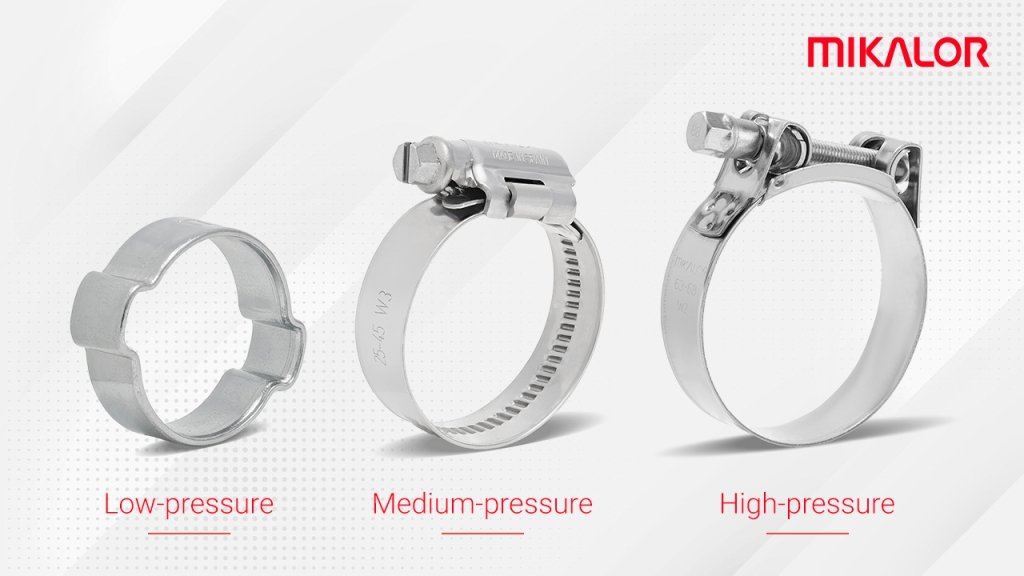

Depending on the pressure and application, hose clamps are classified as:

• Low-pressure: for air or water lines in domestic or light-duty equipment

• Medium-pressure: for coolant or fuel systems

• High-pressure: for industrial hydraulics, turbo systems, and compressors

For these demanding environments, heavy duty hose clamps such as the Supra type—made entirely from AISI 304 or AISI 316 stainless steel—offer exceptional durability, uniform tightening, and corrosion resistance.

From basic to precision engineering

Modern stainless steel hose clamps have evolved from simple retaining rings into high-precision engineering components, subject to strict dimensional control, torque testing, and sealing verification.

The key difference between a standard band clamp and a high-performance model lies in the threading precision, band geometry, and material quality. Advanced models like Supra integrate high-strength screws and swing bridges that maintain sealing even under high pressure and continuous vibration (CT).

Common materials for hose clips and clamps

The adoption of stainless steel marked a technological milestone, improving mechanical strength, corrosion resistance, and lifespan.

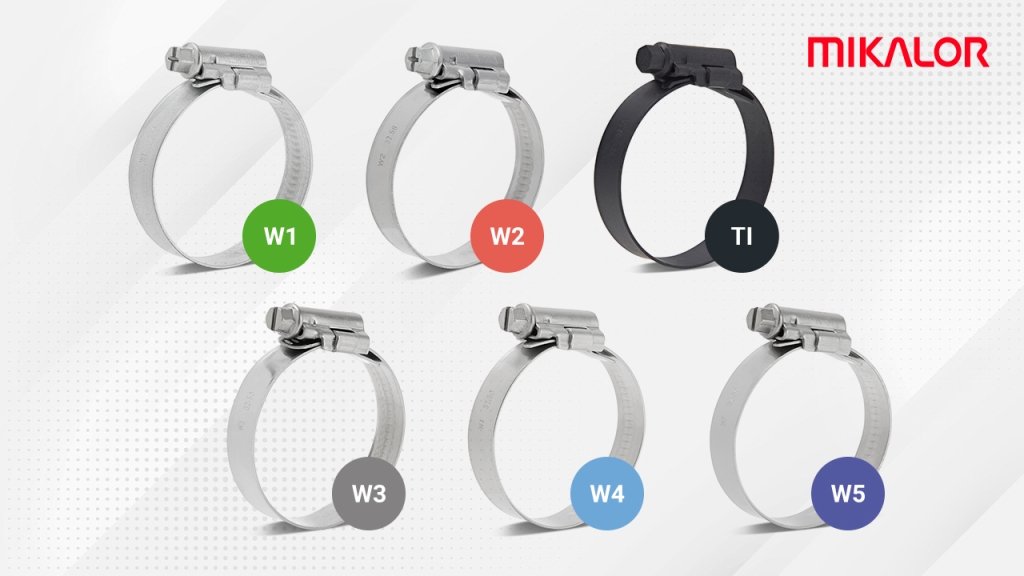

Most common materials:

• Zinc-plated carbon steel / mixed W1–W2 with AISI 430: suitable for dry or mildly corrosive environments.

• Stainless steel (W3, W4, W5):

  • W3 (AISI 430): widely used in automotive.

  • W4 (AISI 304): general-purpose corrosion resistance.

  • W5 (AISI 316): superior resistance in chloride-rich or marine environments.

• Titanium (Ti): ultra-high strength and corrosion resistance for extreme duty (motorsport, marine engines, chemical plants).

Compliance with DIN, ISO 9001, IATF 16949, REACH, and RoHS ensures dimensional accuracy, mechanical performance, and environmental responsibility.

Tightening systems: screw clamps vs. non-screw clamps

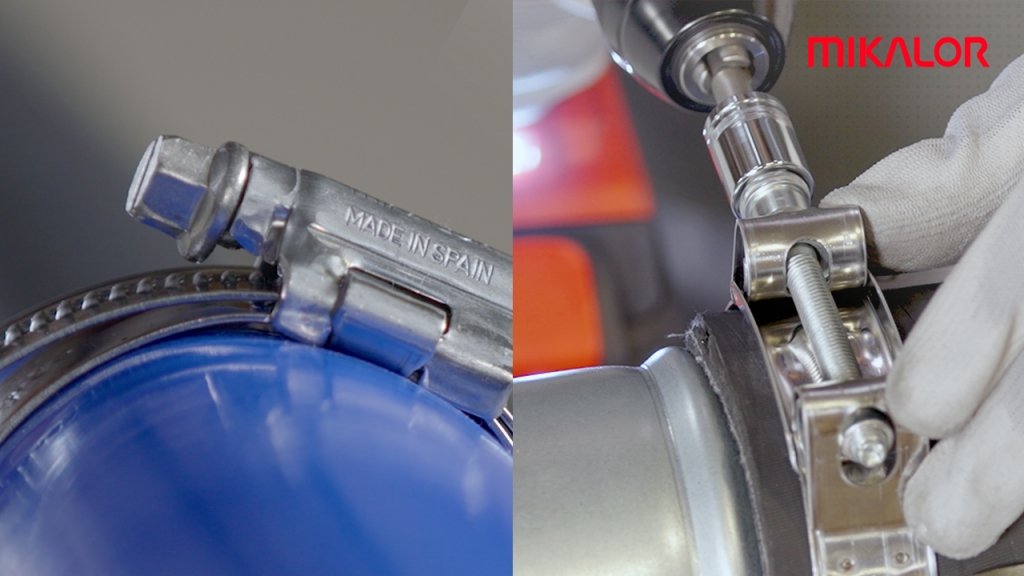

Screw-type hose clamps (worm clamp / screw clamp / adjustable hose clamp)

This is the most common tightening system in industry. A worm-drive screw gradually increases radial load as it turns, allowing progressive, uniform, and controllable tightening. Bands are produced in different widths and thicknesses to match pressure, temperature, and vibration requirements. These adjustable hose clamps serve both maintenance and OEM assembly across automotive, HVAC, and hydraulic applications. For higher loads, bridge or T-bolt styles are chosen as a heavy duty hose clamp.

Non-screw clamps (ear, spring, clip, and banding systems)

Where rapid, secure assembly is needed at lower to medium pressure—often with tamper-evident installation—non-screw systems excel:

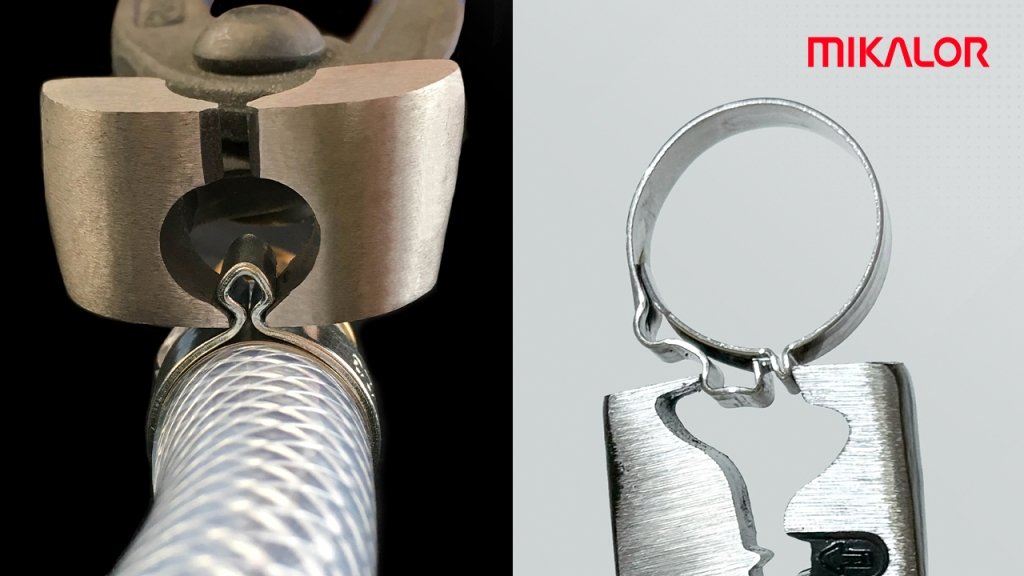

• Ear clamps (single/double ear): crimped with pneumatic or manual pincers (front or side-entry), producing a consistent, permanent clamp.

• Spring clamps (DIN 3021) and clip clamps: installed with dedicated pliers; their elasticity maintains tension across temperature swings.

• Stainless Steel Cable Tie / band clamp: a continuous band tightened with a handheld or application tool, delivering a neat, uniform, and non-releasable finish valued where both safety and appearance matter.

Choosing the right tightening system improves sealing, extends hose life, and reduces leak-related downtime.

Where are metal hose clamps used?

1. Automotive & Transportation

Maintain uniform radial pressure on coolant, fuel, and charge-air hoses. For vibration and thermal shifts, constant-tension designs and heavy duty hose clamps deliver sustained sealing, ideal for turbo and after treatment systems.

2. Chemical & Food Processing

For frequent wash downs and corrosive media, stainless steel clamps in AISI 316 (W5) are corrosion-resistant and comply with international sanitary standards.

3. HVAC & Industrial Climate Control

On air, water, and refrigerant circuits, clamps provide uniform compression despite thermal expansion and condensation, preserving energy efficiency and system safety.

4. Power & Process Industries

In hydraulic or steam circuits, reinforced clamps tolerate high tightening torques without deformation and support plant safety standards.

5. Marine & Offshore

In salt-spray and constant humidity, AISI 316 (W5) stainless steel hose clamps are essential to prevent corrosion and premature failures in critical systems.

Continuous innovation & quality control

Leading manufacturers validate corrosion resistance (e.g., ASTM B117 salt-spray), verify break-torque and sealing integrity, and conduct dynamic Pressure-Vibration-Temperature (PVT) testing. Modern bands use rounded edges to protect hoses, engineered surface treatments to control friction and corrosion, and tight micrometric tolerances. The shared objective is consistent: maximum reliability under extreme operating conditions.

Mikalor: 80+ years advancing the hose clamp

Since its founding, Mikalor has pioneered the development and manufacture of metal hose clamps, setting technical benchmarks recognized worldwide. With more than eight decades of innovation, its range covers everything from classic worm clamps to robust high-pressure solutions in AISI 304 and AISI 316.

If you need to source hose clamps—or consult a team with deep specialization in hose clips, band clamps, and heavy duty hose clamps—we’re here to help. Visit the Private Area to access extended technical data, up-to-date catalogues, and tailored support for your projects.
