Tutorial: How to install ASFA bridge clamps

ASFA L (9 mm) with bridge hose clamp

W2 - Stainless steel - 1 Bridge - Right Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W3 - Stainless steel AISI 430 - 1 Bridge - Right Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W4 - Stainless steel AISI 304 - 1 Bridge - Right Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W5 - Stainless steel AISI 316 - 1 Bridge - Right Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W2 - Stainless steel - 1 Bridge - Left Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W3 - Stainless steel AISI 430 - 1 Bridge - Left Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W4 - Stainless steel AISI 304 - 1 Bridge - Left Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W5 - Stainless steel AISI 316 - 1 Bridge - Left Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W2 - Stainless steel - 2 Bridges - Right Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W3 - Stainless steel AISI 430 - 2 Bridges - Right Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W4 - Stainless steel AISI 304 - 2 Bridges - Right Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W5 - Stainless steel AISI 316 - 2 Bridges - Right Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W2 - Stainless steel - 2 Bridges - Left Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W3 - Stainless steel AISI 430 - 2 Bridges - Left Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W4 - Stainless steel AISI 304 - 2 Bridges - Left Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

W5 - Stainless steel AISI 316 - 2 Bridges - Left Bridge

The ASFA L Bridge Clamp, with 9 mm bandwidth and manufactured with one or two bridges, are the ideal solution for installation on hoses with an outer helix.

Benefits:

Optimised Design: The right- or left-handed bridges and their innovative geometry ensure a perfect assembly and an excellent leak-tightness in every type of application.
Versatile Application: Particularly suitable for hoses with medium and large bore diameters used for ventilation or extraction.
Different Options: Available in a wide range of qualities, from galvanised steel, offering an economical option, to high quality stainless steel, ideal for applications in highly humid and corrosive environments.

What quality do you need?

What presentation do you need?

1 Bridge

2 Bridges

What do you need?

Left Bridge

Right Bridge

Brochure-A1PDW2L.pdf

Download |

Material:
Stainless steel band and housing W2 AISI 430 X6Cr17 (DIN 1.4016)
Steel screw Qst 36-3 (DIN 1.0214) Zinc plated Cr3

Corrosion resistance:
72 hours salt spray (ASTM B-117)

Max. Tightening speed (RPM):
540 ± 5

All references

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity

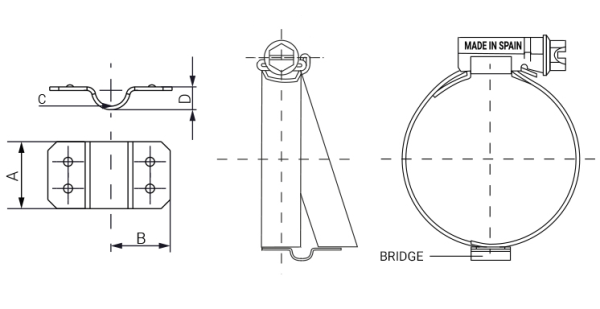

A1PD3250W2L	32-50	32-46	10	12	3,0	5	100
A1PD4060W2L	40-60	40-56	10	12	3,1	5	100
A1PD5070W2L	50-70	50-66	10	12	3,2	5	100
A1PD6080W2L	60-80	60-76	10	12	3,3	5	100
A1PD7090W2L	70-90	70-86	10	12	3,4	5	50
A1PD80100W2L	80-100	80-96	10	12	3,5	5	50
A1PD90110W2L	90-110	90-106	10	12	3,6	5	25
A1PD100120W2L	100-120	100-116	10	12	3,7	5	25
A1PD110130W2L	110-130	110-126	10	12	3,8	5	25
A1PD120140W2L	120-140	120-136	10	12	3,9	5	25
A1PD130150W2L	130-150	130-146	10	12	3,10	5	25
A1PD140160W2L	140-160	140-156	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A1PD3250W3L	32-50	32-46	10	12	3,0	5	100
A1PD4060W3L	40-60	40-56	10	12	3,1	5	100
A1PD5070W3L	50-70	50-66	10	12	3,2	5	100
A1PD6080W3L	60-80	60-76	10	12	3,3	5	100
A1PD7090W3L	70-90	70-86	10	12	3,4	5	50
A1PD80100W3L	80-100	80-96	10	12	3,5	5	50
A1PD90110W3L	90-110	90-106	10	12	3,6	5	25
A1PD100120W3L	100-120	100-116	10	12	3,7	5	25
A1PD110130W3L	110-130	110-126	10	12	3,8	5	25
A1PD120140W3L	120-140	120-136	10	12	3,9	5	25
A1PD130150W3L	130-150	130-146	10	12	3,10	5	25
A1PD140160W3L	140-160	140-156	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A1PD3250W4L	32-50	32-46	10	12	3,0	5	100
A1PD4060W4L	40-60	40-56	10	12	3,1	5	100
A1PD5070W4L	50-70	50-66	10	12	3,2	5	100
A1PD6080W4L	60-80	60-76	10	12	3,3	5	100
A1PD7090W4L	70-90	70-86	10	12	3,4	5	50
A1PD80100W4L	80-100	80-96	10	12	3,5	5	50
A1PD90110W4L	90-110	90-106	10	12	3,6	5	25
A1PD100120W4L	100-120	100-116	10	12	3,7	5	25
A1PD110130W4L	110-130	110-126	10	12	3,8	5	25
A1PD120140W4L	120-140	120-136	10	12	3,9	5	25
A1PD130150W4L	130-150	130-146	10	12	3,10	5	25
A1PD140160W4L	140-160	140-156	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A1PD3250W5L	32-50	32-46	10	12	3,0	5	100
A1PD4060W5L	40-60	40-56	10	12	3,1	5	100
A1PD5070W5L	50-70	50-66	10	12	3,2	5	100
A1PD6080W5L	60-80	60-76	10	12	3,3	5	100
A1PD7090W5L	70-90	70-86	10	12	3,4	5	50
A1PD80100W5L	80-100	80-96	10	12	3,5	5	50
A1PD90110W5L	90-110	90-106	10	12	3,6	5	25
A1PD100120W5L	100-120	100-116	10	12	3,7	5	25
A1PD110130W5L	110-130	110-126	10	12	3,8	5	25
A1PD120140W5L	120-140	120-136	10	12	3,9	5	25
A1PD130150W5L	130-150	130-146	10	12	3,10	5	25
A1PD140160W5L	140-160	140-156	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity

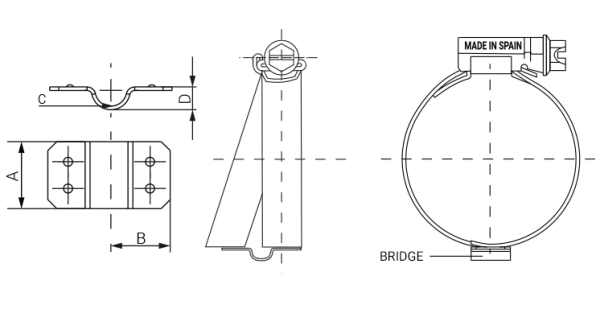

A1PI3250W2L	32-50	32-46	10	12	3,0	5	100
A1PI4060W2L	40-60	40-56	10	12	3,1	5	100
A1PI5070W2L	50-70	50-66	10	12	3,2	5	100
A1PI6080W2L	60-80	60-76	10	12	3,3	5	100
A1PI7090W2L	70-90	70-86	10	12	3,4	5	50
A1PI80100W2L	80-100	80-96	10	12	3,5	5	50
A1PI90110W2L	90-110	90-106	10	12	3,6	5	25
A1PI100120W2L	100-120	100-116	10	12	3,7	5	25
A1PI110130W2L	110-130	110-126	10	12	3,8	5	25
A1PI120140W2L	120-140	120-136	10	12	3,9	5	25
A1PI130150W2L	130-150	130-146	10	12	3,10	5	25
A1PI140160W2L	140-160	140-156	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A1PI3250W3L	32-50	32-46	10	12	3,0	5	100
A1PI4060W3L	40-60	40-56	10	12	3,1	5	100
A1PI5070W3L	50-70	50-66	10	12	3,2	5	100
A1PI6080W3L	60-80	60-76	10	12	3,3	5	100
A1PI7090W3L	70-90	70-86	10	12	3,4	5	50
A1PI80100W3L	80-100	80-96	10	12	3,5	5	50
A1PI90110W3L	90-110	90-106	10	12	3,6	5	25
A1PI100120W3L	100-120	100-116	10	12	3,7	5	25
A1PI110130W3L	110-130	110-126	10	12	3,8	5	25
A1PI120140W3L	120-140	120-136	10	12	3,9	5	25
A1PI130150W3L	130-150	130-146	10	12	3,10	5	25
A1PI140160W3L	140-160	140-156	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A1PI3250W4L	32-50	32-46	10	12	3,0	5	100
A1PI4060W4L	40-60	40-56	10	12	3,1	5	100
A1PI5070W4L	50-70	50-66	10	12	3,2	5	100
A1PI6080W4L	60-80	60-76	10	12	3,3	5	100
A1PI7090W4L	70-90	70-86	10	12	3,4	5	50
A1PI80100W4L	80-100	80-96	10	12	3,5	5	50
A1PI90110W4L	90-110	90-106	10	12	3,6	5	25
A1PI100120W4L	100-120	100-116	10	12	3,7	5	25
A1PI110130W4L	110-130	110-126	10	12	3,8	5	25
A1PI120140W4L	120-140	120-136	10	12	3,9	5	25
A1PI130150W4L	130-150	130-146	10	12	3,10	5	25
A1PI140160W4L	140-160	140-156	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A1PI3250W5L	32-50	32-46	10	12	3,0	5	100
A1PI4060W5L	40-60	40-56	10	12	3,1	5	100
A1PI5070W5L	50-70	50-66	10	12	3,2	5	100
A1PI6080W5L	60-80	60-76	10	12	3,3	5	100
A1PI7090W5L	70-90	70-86	10	12	3,4	5	50
A1PI80100W5L	80-100	80-96	10	12	3,5	5	50
A1PI90110W5L	90-110	90-106	10	12	3,6	5	25
A1PI100120W5L	100-120	100-116	10	12	3,7	5	25
A1PI110130W5L	110-130	110-126	10	12	3,8	5	25
A1PI120140W5L	120-140	120-136	10	12	3,9	5	25
A1PI130150W5L	130-150	130-146	10	12	3,10	5	25
A1PI140160W5L	140-160	140-156	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A2PD3250W2L	32-50	32-43	10	12	3,0	5	100
A2PD4060W2L	40-60	40-53	10	12	3,1	5	100
A2PD5070W2L	50-70	50-63	10	12	3,2	5	100
A2PD6080W2L	60-80	60-73	10	12	3,3	5	100
A2PD7090W2L	70-90	70-83	10	12	3,4	5	50
A2PD80100W2L	80-100	80-93	10	12	3,5	5	50
A2PD90110W2L	90-110	90-103	10	12	3,6	5	25
A2PD100120W2L	100-120	100-113	10	12	3,7	5	25
A2PD110130W2L	110-130	110-123	10	12	3,8	5	25
A2PD120140W2L	120-140	120-133	10	12	3,9	5	25
A2PD130150W2L	130-150	130-143	10	12	3,10	5	25
A2PD140160W2L	140-160	140-153	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A2PD3250W3L	32-50	32-43	10	12	3,0	5	100
A2PD4060W3L	40-60	40-53	10	12	3,1	5	100
A2PD5070W3L	50-70	50-63	10	12	3,2	5	100
A2PD6080W3L	60-80	60-73	10	12	3,3	5	100
A2PD7090W3L	70-90	70-83	10	12	3,4	5	50
A2PD80100W3L	80-100	80-93	10	12	3,5	5	50
A2PD90110W3L	90-110	90-103	10	12	3,6	5	25
A2PD100120W3L	100-120	100-113	10	12	3,7	5	25
A2PD110130W3L	110-130	110-123	10	12	3,8	5	25
A2PD120140W3L	120-140	120-133	10	12	3,9	5	25
A2PD130150W3L	130-150	130-143	10	12	3,10	5	25
A2PD140160W3L	140-160	140-153	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A2PD3250W4L	32-50	32-43	10	12	3,0	5	100
A2PD4060W4L	40-60	40-53	10	12	3,1	5	100
A2PD5070W4L	50-70	50-63	10	12	3,2	5	100
A2PD6080W4L	60-80	60-73	10	12	3,3	5	100
A2PD7090W4L	70-90	70-83	10	12	3,4	5	50
A2PD80100W4L	80-100	80-93	10	12	3,5	5	50
A2PD90110W4L	90-110	90-103	10	12	3,6	5	25
A2PD100120W4L	100-120	100-113	10	12	3,7	5	25
A2PD110130W4L	110-130	110-123	10	12	3,8	5	25
A2PD120140W4L	120-140	120-133	10	12	3,9	5	25
A2PD130150W4L	130-150	130-143	10	12	3,10	5	25
A2PD140160W4L	140-160	140-153	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A2PD3250W5L	32-50	32-43	10	12	3,0	5	100
A2PD4060W5L	40-60	40-53	10	12	3,1	5	100
A2PD5070W5L	50-70	50-63	10	12	3,2	5	100
A2PD6080W5L	60-80	60-73	10	12	3,3	5	100
A2PD7090W5L	70-90	70-83	10	12	3,4	5	50
A2PD80100W5L	80-100	80-93	10	12	3,5	5	50
A2PD90110W5L	90-110	90-103	10	12	3,6	5	25
A2PD100120W5L	100-120	100-113	10	12	3,7	5	25
A2PD110130W5L	110-130	110-123	10	12	3,8	5	25
A2PD120140W5L	120-140	120-133	10	12	3,9	5	25
A2PD130150W5L	130-150	130-143	10	12	3,10	5	25
A2PD140160W5L	140-160	140-153	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A2PI3250W2L	32-50	32-43	10	12	3,0	5	100
A2PI4060W2L	40-60	40-53	10	12	3,1	5	100
A2PI5070W2L	50-70	50-63	10	12	3,2	5	100
A2PI6080W2L	60-80	60-73	10	12	3,3	5	100
A2PI7090W2L	70-90	70-83	10	12	3,4	5	50
A2PI80100W2L	80-100	80-93	10	12	3,5	5	50
A2PI90110W2L	90-110	90-103	10	12	3,6	5	25
A2PI100120W2L	100-120	100-113	10	12	3,7	5	25
A2PI110130W2L	110-130	110-123	10	12	3,8	5	25
A2PI120140W2L	120-140	120-133	10	12	3,9	5	25
A2PI130150W2L	130-150	130-143	10	12	3,10	5	25
A2PI140160W2L	140-160	140-153	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A2PI3250W3L	32-50	32-43	10	12	3,0	5	100
A2PI4060W3L	40-60	40-53	10	12	3,1	5	100
A2PI5070W3L	50-70	50-63	10	12	3,2	5	100
A2PI6080W3L	60-80	60-73	10	12	3,3	5	100
A2PI7090W3L	70-90	70-83	10	12	3,4	5	50
A2PI80100W3L	80-100	80-93	10	12	3,5	5	50
A2PI90110W3L	90-110	90-103	10	12	3,6	5	25
A2PI100120W3L	100-120	100-113	10	12	3,7	5	25
A2PI110130W3L	110-130	110-123	10	12	3,8	5	25
A2PI120140W3L	120-140	120-133	10	12	3,9	5	25
A2PI130150W3L	130-150	130-143	10	12	3,10	5	25
A2PI140160W3L	140-160	140-153	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A2PI3250W4L	32-50	32-43	10	12	3,0	5	100
A2PI4060W4L	40-60	40-53	10	12	3,1	5	100
A2PI5070W4L	50-70	50-63	10	12	3,2	5	100
A2PI6080W4L	60-80	60-73	10	12	3,3	5	100
A2PI7090W4L	70-90	70-83	10	12	3,4	5	50
A2PI80100W4L	80-100	80-93	10	12	3,5	5	50
A2PI90110W4L	90-110	90-103	10	12	3,6	5	25
A2PI100120W4L	100-120	100-113	10	12	3,7	5	25
A2PI110130W4L	110-130	110-123	10	12	3,8	5	25
A2PI120140W4L	120-140	120-133	10	12	3,9	5	25
A2PI130150W4L	130-150	130-143	10	12	3,10	5	25
A2PI140160W4L	140-160	140-153	10	12	3,11	5	25

Part number	Dimension	Ø Application	A	B	C	D	Box Quantity
A2PI3250W5L	32-50	32-43	10	12	3,0	5	100
A2PI4060W5L	40-60	40-53	10	12	3,1	5	100
A2PI5070W5L	50-70	50-63	10	12	3,2	5	100
A2PI6080W5L	60-80	60-73	10	12	3,3	5	100
A2PI7090W5L	70-90	70-83	10	12	3,4	5	50
A2PI80100W5L	80-100	80-93	10	12	3,5	5	50
A2PI90110W5L	90-110	90-103	10	12	3,6	5	25
A2PI100120W5L	100-120	100-113	10	12	3,7	5	25
A2PI110130W5L	110-130	110-123	10	12	3,8	5	25
A2PI120140W5L	120-140	120-133	10	12	3,9	5	25
A2PI130150W5L	130-150	130-143	10	12	3,10	5	25
A2PI140160W5L	140-160	140-153	10	12	3,11	5	25

ASFA L (9 mm) with bridge hose clamp

W2 - Stainless steel - 1 Bridge - Right Bridge

What quality do you need?

What presentation do you need?

What do you need?

Technical info for combination: W2 - Stainless steel - 1 Bridge - Right Bridge

All References for combination: W2 - Stainless steel - 1 Bridge - Right Bridge
