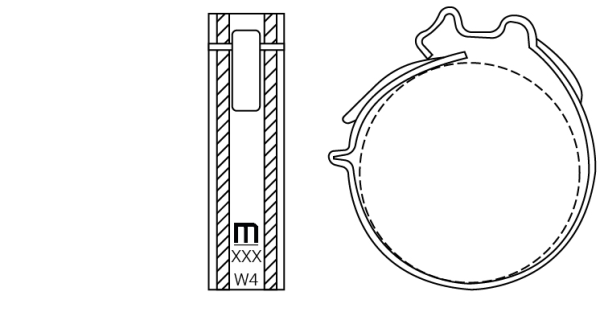

Clip clamp

The clip clamps are manufactured from AISI 304 stainless steel strip which ensures durability and strength over time.

Their locking design provides a precise and secure fit, maintaining a constant tightening torque even with changes in temperature or pressure.

Benefits:

Quick Assembly: Thanks to its design, it can be installed in a few seconds using a pair of pliers.
Rounded Edges: Perfectly rounded edges prevent any damage or deterioration to the hose during installation and use, protecting the integrity of the system.
High Corrosion Resistance: Manufactured from AISI 304 stainless steel, these clamps offer superior corrosion resistance, ensuring long life and durable performance in a variety of conditions.

What quality do you need?

Brochure-CLIP.pdf

Download |

Material:
W4 Stainless steel X5Cr Ni 18/10 DIN 1.4301 AISI 304

Corrosion resistance:
400 hours salt spray (ASTM B-117)

All references

Part number	Denomination	Ø Application	Ø S Mín.	B ±0.1	Color	Box Quantity	Outer Box Quantity
03030410	CLIP 8	8,5-9,5	9.5	7	Yellow	500	8000
03030429	CLIP 9	9,5-10,5	10.5	7	Violet	500	8000
03030437	CLIP 10	10,5-11,5	11.5	7	Neutro	500	4000
03030445	CLIP 11	11,5-12,5	12.5	7	Green	500	4000
03030453	CLIP 12	12,5-14,0	14	8	Black	500	4000
03030461	CLIP 13	13,5-15,0	15	8	Yellow	500	2000
03030470	CLIP 14	14,5-16,0	16	8	Violet	250	2000
03030488	CLIP 15	15,5-17,0	17	8	Neutro	250	2000
03030496	CLIP 16	16,5-18,0	18	8	Green	250	2000
03030509	CLIP 17	17,5-19,0	19	8	Black	250	2000
03030517	CLIP 18	18,5-20,0	20	8	Yellow	250	2000
03030525	CLIP 19	19,5-21,0	21	8	Violet	250	2000
03030533	CLIP 20	20,5-22,0	22	8	Neutro	250	2000
03030541	CLIP 21	21,5-23,0	23	8	Green	250	2000
03030550	CLIP 22	22,5-24,0	24	8	Black	250	2000
03030568	CLIP 23	23,5-25,0	25	8	Yellow	250	2000
03030576	CLIP 24	24,5-26,0	26	8	Violet	250	2000
03030584	CLIP 25	25,5-27,0	27	8	Neutro	250	1000
03030592	CLIP 26	26,5-28,0	28	8	Green	250	1000
