DIN 3016 P-Clip Form D

W1

Our Rubber lined P-Clips are manufactured from steel strips lined with EPDM rubber. This rubber liner provides a safe tight-fitting assembly, protecting the application area and preventing possible damage caused from vibration.

*All in compliance with DIN 3016 standards.



Benefits:

  • Robust Design: The top of the screw are reinforced with metal plates to guarantee a solid grip.
  • Protective: The EPDM rubber profile protects the application area and minimises damage from vibration.
  • Versatile: Ideal for fastening pipes, electrical cables and hoses in a wide range of applications.

What quality do you need?

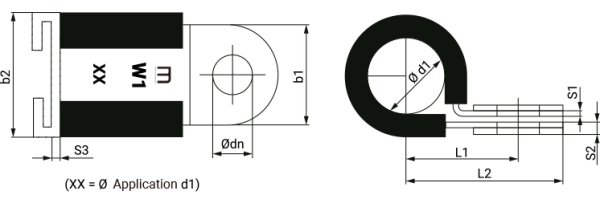

Technical info for combination: W1

Brochure-AGDW1.pdf
Download |

Material:
Steel W1 DIN 1.0330 or DIN 1.0529

Finish:
Galvanized / Black EPDM Rubber

Corrosion resistance:
144 hours salt spray (ASTM B-117)

All References for combination: W1

View All references
